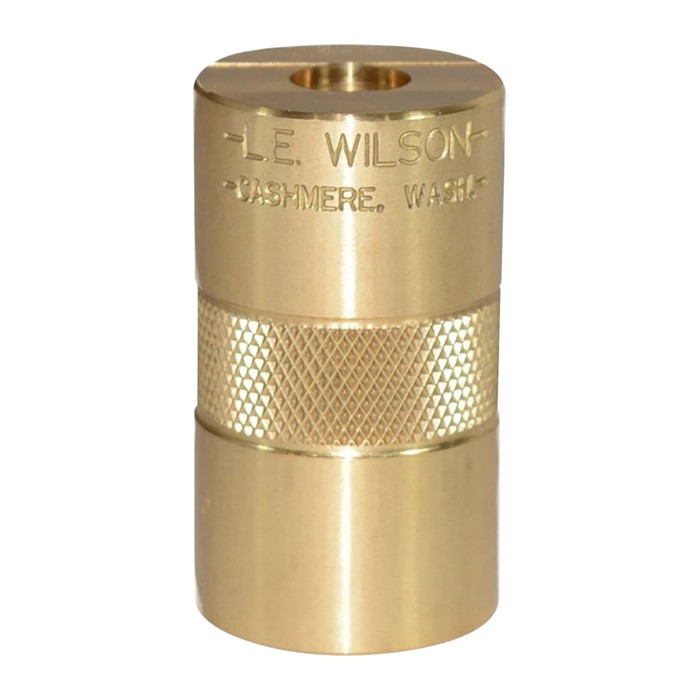

Wilson Brass Case Gage .223 Rem
$52.80
The L.E. Wilson brass case gage for .223 Rem is a precision measuring tool built to catch the two things that tank brass longevity and reload quality: improper shoulder setback and out-of-spec case length. Unlike generic calipers, this purpose-built gage lets you see exactly how much your sizing die is pushing the shoulder back, then dial in the perfect adjustment. If you're serious about preserving brass and keeping headspace consistent, this tool turns reloading from guesswork into repeatable, safe practice.
Designed in 1935 by founder L.E. Wilson to solve real case separation failures, the gage works by comparing fired brass to resized brass in the same tool. Measure a case fresh from the gun, note the headspace reading, resize, then gage again to see the difference. That's how much shoulder you've moved. Pair it with the optional Case Gage Depth Micrometer for precise numerical data, or keep adjusting your die until cases fit the gage perfectly. The result: repeatable shoulder setback that extends brass life and keeps pressures in the safe zone.
After sizing, brass naturally lengthens. This gage catches that too, flagging cases that need trimming to keep them in min/max spec. It won't measure body diameter, and it's meant for fired cases as the reference standard—that's where the real intelligence comes from. Every reloader who shoots .223 Rem and wants to load once, load right, and load safely should have one.
Key Features
- Measures headspace and shoulder setback to ensure safe, consistent resizing
- Identifies cases that need trimming by checking min/max case length
- One-piece design for durability and reliable comparison between fired and resized brass
- Purpose-built for .223 Rem cartridges
- Works with optional Case Gage Depth Micrometer for numerical precision
- Proven design based on 1935 innovation by L.E. Wilson founder
Specifications
| Brand | L.E. Wilson |
| Cartridge | .223 Rem |
| Type | Case Headspace & Length Gage |
| Design | One-piece gage |
| Intended Use | Fired cases (reference standard) |
Frequently Asked Questions
How do I use a case gage for .223 Rem reloading?
Measure a fired case first and note the headspace reading. Resize that case on your current die setting, then place it back in the gage to see how much the shoulder moved. Adjust your die accordingly. After sizing, check the case again to ensure it falls within min/max case length; trim if necessary.
Will this gage tell me about case body diameter or other measurements?
No. This gage is designed specifically to measure headspace, shoulder setback, and overall case length. It does not measure body diameter or other external dimensions.
What cases can I use in a .223 Rem case gage?
This gage is sized for .223 Rem. Always use fired brass from your gun as the reference standard, since fired cases establish the true headspace baseline for your chamber.
Can I use a case gage without a micrometer?
Yes. You can visually compare fired and resized cases to see relative movement and ensure cases fit the gage. The optional Case Gage Depth Micrometer simply gives you a numerical value for more precise shoulder setback control.
