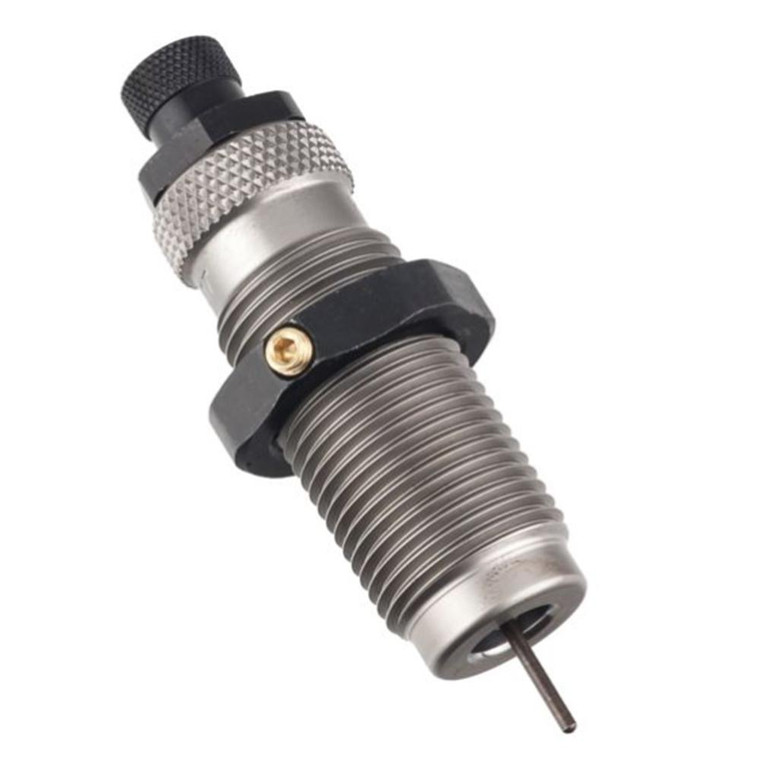

RCBS X Die Small Base Sizer Die Only .223 Rem
$65.11
The RCBS X Die Small Base Sizer is a purpose-built rifle die for .223 Remington reloaders who want to minimize case trimming work without sacrificing accuracy or case longevity. Unlike standard sizing dies, this sizer die features a patented mandrel design that addresses one of handloading's most tedious chores: the need to trim cases repeatedly as they grow with each firing and sizing cycle.
Here's what makes it different. The X Die's mandrel includes both an expander ball and decapping pin, and its carefully engineered tolerances between the mandrel and die neck wall prevent the neck from thickening during sizing. This design dramatically reduces case growth compared to conventional dies. After an initial trim to establish your case length (removing approximately .020" from maximum), you'll find that cases stabilize below maximum length and stop growing meaningfully. Most reloaders report needing little to no additional trimming, even after numerous reload cycles.
This is the sizer die only—it handles sizing and decapping but not bullet seating. If you're new to reloading .223 Rem, you'll need a separate seating die to complete your die set. Experienced handloaders who already own a standard seating die can integrate this sizer into their existing setup. The engineering is straightforward: less case growth means fewer trips to the trimmer, more time at the bench actually loading ammunition, and cases that perform consistently shot after shot.
Key Features
- Small base design for reliable chambering in tight or military-spec .223 Rem chambers
- Patented mandrel with integrated expander ball and decapping pin
- Engineered tight tolerances minimize case neck thickening during sizing
- Dramatically reduces case growth—initial trim, then stabilization with minimal future trimming
- Designed to maintain accuracy and case life across multiple reload cycles
- Die only—sizer and decapper; seating die sold separately
Specifications
| Product Type | Rifle Sizer Die |
| Caliber | .223 Remington |
| Base Type | Small Base |
| Includes | Sizer die only (expander ball and decapping pin integrated) |
| Brand | RCBS |
Frequently Asked Questions
Do I need a seating die to use this sizer die?
Yes. The X Die Small Base Sizer handles sizing, decapping, and neck expansion only. You'll need a separate seating die to seat bullets. RCBS offers the X Die Small Base Set if you need both the sizer and a standard seating die together.
Will this die work in my .223 Rem AR or bolt rifle?
The small base design is specifically engineered for reliable chambering, including in tighter or military-specification .223 Rem chambers. It should function in standard commercial rifles as well, though small base dies are most beneficial in semi-auto platforms where chamber tolerances can vary.
How much do I need to trim cases initially?
RCBS recommends trimming approximately .020" off the maximum case length to standardize your brass before first use in the X Die. After that initial trim, the die's mandrel design prevents excessive growth, and most reloaders find minimal or no additional trimming is necessary.
Will using this die affect case life or accuracy?
No. Cases sized in the X Die will initially grow a few thousandths of an inch, then stabilize below maximum length. The design maintains consistent accuracy and does not cause discernible loss of case life across repeated reload cycles.
