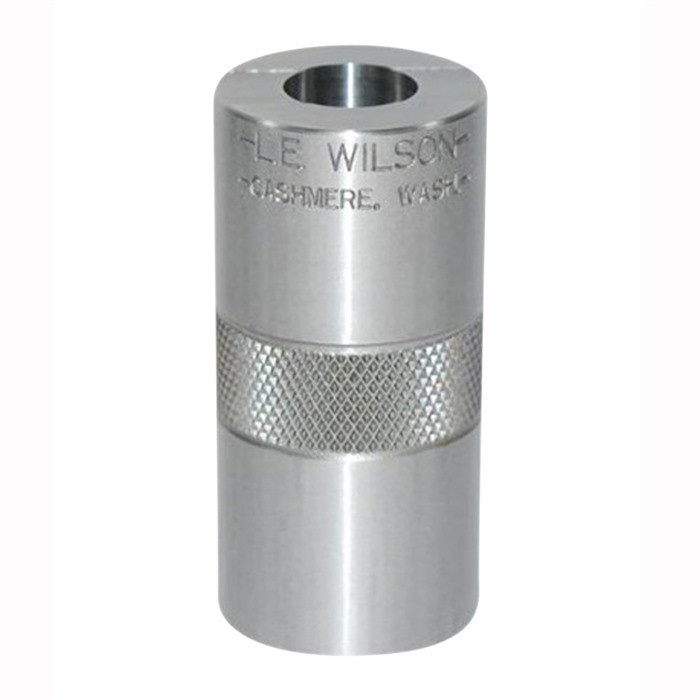

The L.E. Wilson Case Gage 6mm BR-A is a one-piece cartridge case measurement tool designed to help reloaders set up full-length resizing dies with precision and avoid the common mistake of over-sizing brass. If you're loading for 6mm BR-A and want to dial in your press setup correctly, a case gage lets you verify headspace and overall length quickly—two critical dimensions that directly affect case life and safety. This tool works alongside your calipers to give you accurate, repeatable measurements before you run fired cases through your dies.
Measuring headspace and case length on fired brass is one of the most important quality-control steps in handloading, yet many reloaders skip it or guess. Using the Wilson gage eliminates that guesswork. You simply insert a fired case into the gage—it's sized to match the 6mm BR-A chamber—and use a dial or digital caliper to measure datum to head length. That reading tells you exactly how much shoulder movement you need from your resizing die. Get it right, and your brass will last longer and perform more consistently. Get it wrong, and you're needlessly working hardened brass and shortening case life.
The gage is a simple, field-proven design made by a company with decades of reloading-tool credibility. It comes with instructions and arrives in a cardboard box. One piece, no moving parts, no batteries—just a solid steel reference that fits in your reloading bench drawer and pays for itself in the first box of brass you measure.
Key Features
- Measures overall length to identify cases requiring trimming
- Checks datum-to-head length for precise headspace verification
- Helps prevent over-sizing brass and extends case life
- Simplifies full-length resizing die setup for 7/8"-14 press-type dies
- One-piece design with no moving parts for durability and reliability
Specifications
| Product | L.E. Wilson Case Gage 6mm BR-A |
| Type | One-piece case measurement gage |
| Overall Length | 2.494" |
| Large End ID | .473" |
| Small End ID | .347" |
| Outside Diameter | .991" |
| Finish | Silver with knurled grip section |
| Included | Gage and instructions |
Frequently Asked Questions
What do I use a case gage for in reloading?
A case gage helps you set your full-length resizing die to the correct position, ensuring your fired cases are resized properly without over-sizing the brass. It measures both overall length (to flag cases needing trimming) and datum-to-head length (to verify headspace). This prevents premature case failure and helps you get more loadings from your brass.
How do I use the L.E. Wilson gage with my calipers?
Insert a fired case into the gage. Using a dial or digital caliper, measure from the datum point (the gage's reference surface) to the head of the case. Compare that measurement to your target headspace, and adjust your resizing die accordingly. The gage itself provides the reference; your calipers do the measuring.
Is this gage compatible with my press and resizing die?
This gage is designed for use with 7/8"-14 press-type full-length resizing dies, the standard thread size for most reloading presses. Consult your die manufacturer's documentation to confirm compatibility with your specific setup.
What's included in the box?
The package includes the case gage and instructions. You'll need to supply your own calipers to take measurements.
