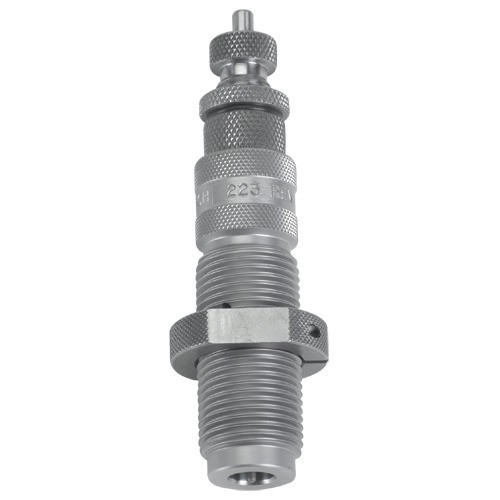

Hornady Match Grade New Dimension Neck Size Die, 223 Rem

The Hornady Match Grade New Dimension Neck Size Die for .223 Rem is built for reloaders who demand precision and consistency in every round they load. If you're building match-grade ammunition or simply want tighter control over case neck tension, this die gives you repeatable results without the guesswork—or the risk of overworking your brass. The key to its performance is the interchangeable neck sizing bushings, which let you dial in exactly the amount of tension your specific bullets need.

Unlike full-length sizing that can over-compress case necks and shorten their service life, the Match Grade Neck Die sizes only the neck (with your chosen bushing) and bumps the shoulder, leaving the case body untouched. This gentler approach means your brass lasts longer and performs more consistently across multiple firings. The bushings come in .002-inch increments, so you can fine-tune your neck tension without settling for a one-size-fits-all compromise. And because the bushings are self-centering, you get concentric sizing that promotes better bullet concentricity and tighter groups.

Construction reflects Hornady's Match Grade reputation: the die features a self-centering decap spindle with an o-ring spindle tensioner, plus an elliptical expander ball and headed decap pin borrowed from their Custom Grade dies. It's a well-finished tool built to handle the demands of serious handloading.

Key Features

• Interchangeable neck sizing bushings (self-centering) for precise, custom neck tension
• Bushings available in .002-inch increments for fine-tuned control
• Neck sizing only—preserves case body and extends brass life
• Shoulder bumping for consistent bolt fit and headspace
• Self-centering decap spindle with o-ring tensioner
• Elliptical expander ball and headed decap pin for reliable decapping
• Match Grade precision and finish

Specifications

Frequently Asked Questions

What's the difference between the Match Grade Neck Die and a full-length die?

The Match Grade Neck Die sizes only the case neck (with your selected bushing) and bumps the shoulder. It does not size the case body. A full-length die would size the body as well, which can increase working and reduce brass life. The neck-only approach is gentler on brass and gives you direct control over neck tension.

How do the interchangeable bushings work?

Bushings come in .002-inch increments and are self-centering in the die. You choose the bushing size that gives you the neck tension you want for your bullets—eliminating the need to over-size and reducing case neck wear. Bushings are not included with the die; they are sold separately.

Is this die suitable for match or precision rifle reloading?

Yes. The Match Grade designation, combined with the self-centering bushings and shoulder bumping, delivers the consistency and control needed for precision handloading and match-grade ammunition.

What caliber and platform is this die for?

This die is specifically designed for .223 Rem. It is a neck size die and is not compatible with other calibers.
