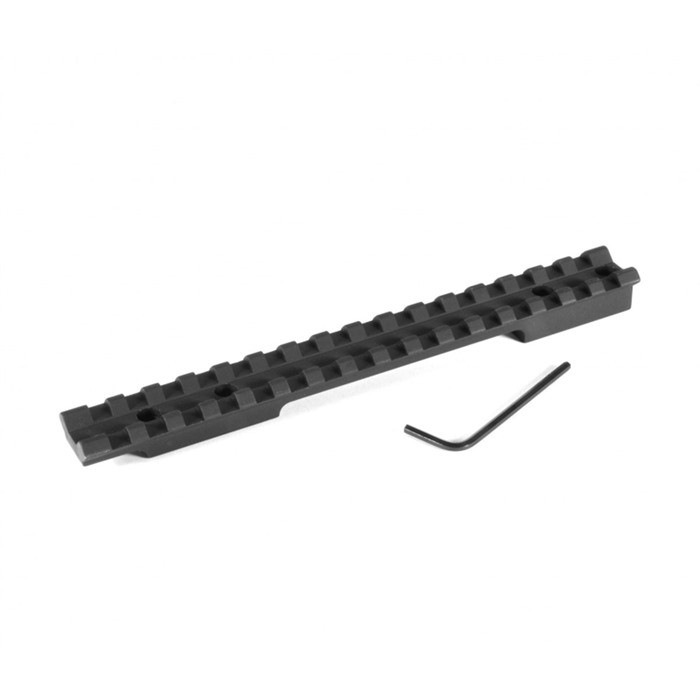

The EGW Savage 10-16 flat back short action scope base brings modern Picatinny rail versatility to your Savage short-action receiver without requiring any gunsmithing. This one-piece mount uses the factory scope mount hole pattern on Savage 10 and 16 receivers, so installation is straightforward and reversible. Built from precision-machined 6061 T6 aluminum, it's rigid enough for hunting and range work while remaining lightweight—and if you're running a tactical build, the milled center channel reduces weight further.
The 20 MOA rake angle is built into the base itself, which means you gain elevation adjustment room without using up your scope's internal turret travel. That's valuable if you're set up for longer-range work or need extra elevation for steep terrain hunting. The full-width Picatinny slots are machined to MIL-STD 1913 spec (±.002"), so ring fit is solid and repeatable whether you run Picatinny or Weaver rings.
EGW includes the socket head Torx screws and wrench you'll need for installation. They recommend 20 inch-pounds of torque and a small drop of blue Loctite to keep things locked down through recoil and seasonal temperature shifts. That's a no-nonsense, field-proven approach.
Key Features
- Fits Savage 10 and 16 short-action receivers without drilling or tapping
- One-piece 6061 T6 aluminum construction for rigidity and light weight
- MIL-STD 1913 Picatinny slots accept both Picatinny and Weaver scope rings
- 20 MOA elevation rake built into the base for extended range capability
- Milled center channel reduces overall weight for tactical configurations
- Includes socket head Torx screws and installation wrench
Specifications
| Manufacturer | EGW (E.M. Wesson Group) |
| Firearm Compatibility | Savage 10, 16 (short action) |
| Mount Type | Flat back, one-piece |
| Rail Standard | Picatinny (MIL-STD 1913) |
| Ring Compatibility | Picatinny or Weaver |
| Elevation Rake | 20 MOA |
| Material | 6061 T6 extruded aluminum |
| Slot Tolerance | ±.002" (MIL-STD 1913 gauge) |
| Recommended Torque | 20 inch-pounds |
| Recommended Loctite | Blue (medium strength) |
| Installation Hardware | Socket head Torx screws with wrench included |
Frequently Asked Questions
Will this mount fit my Savage rifle?
This base is designed for Savage 10 and 16 short-action receivers. It drills and mounts to the factory scope mount holes on those platforms, so no gunsmithing is required.
Can I use Weaver rings with this base?
Yes. While the base features MIL-STD 1913 Picatinny slots, the slot and rail spacing will work with standard Weaver rings as well as Picatinny rings.
What does the 20 MOA rake do?
The 20 MOA angle is machined into the base itself, tilting your scope upward. This gives you additional elevation adjustment without using your scope's internal turret range, which is helpful for longer-distance shooting or steep uphill/downhill hunting angles.
What's included in the box?
The base comes with socket head Torx screws for mounting and a wrench to install them. EGW recommends applying blue Loctite and torquing to 20 inch-pounds during installation.
