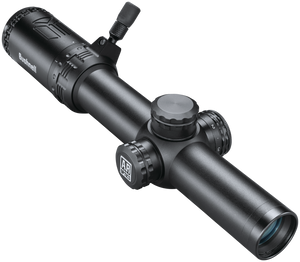

Bushnell 1-8x24 AR Optics 30mm Rifle Scope, Illuminated BTR-1 Reticle - Black
- Finish-Color:
- Black
- Tube Diameter:
- 30mm
- Objective:
- 24mm
- Min Magnification:
- 1x
- Max Magnification:
- 8x
- Reticle:
- Illuminated BTR-1
- Exit Pupil Range:
- Side Focus
- Parallax Adjustment:
- Side
- Proofs:
- Fog/Waterproof
- Coating Type:
- Waterproof, Fogproof
- Optic Coating:
- Fully Multi-Coated
- Eye Relief:
- 3.70'
- Field of View:
- 16 - 100 ft @ 100 yds
- Weight:
- 19.10 oz
The Bushnell 1-8x24 AR Optics 30mm rifle scope is built for shooters who need to move fast between close quarters and distance. With an illuminated BTR-1 reticle in the second focal plane, it lets you acquire targets quickly in low light while keeping your point of aim true across the entire zoom range. The 1x to 8x magnification swing covers everything from fast shooting at 25 yards to precision work past 200, making it equally at home in dense timber, on a 3-gun course, or slung on a modern sporting rifle for home defense. The fully multi-coated optics maintain brightness and clarity across the entire magnification range, and the IPX7 waterproof rating means the scope stays sealed and functional even if you're caught in heavy rain or accidentally submerged.
Bushnell equipped this scope with two throw-down power change levers of different lengths, so you can choose the leverage and positioning that works best for your setup and shooting style. The capped elevation and windage turrets protect the adjustment mechanisms from snags and abuse in the field, and their 6 mil-per-revolution design gives you solid feedback and repeatability. Battery life comes from a single CR2032, standard and easy to find. At 10.2 inches long and 16.5 ounces, the scope won't burden a rifle that needs to be shouldered for hours or carried over rough country.
This is a working optic, not a showcase piece. It's designed to absorb hard use, stay clear, and get out of the way so you can focus on the shot. For shooters building an AR setup that needs to punch above its weight across multiple distances and conditions, the Bushnell 1-8x24 delivers straightforward performance at a realistic price.
Key Features
- Illuminated BTR-1 reticle for low-light target acquisition
- 1-8x magnification range for close to mid-distance shooting
- 30mm main tube with fully multi-coated optics for light transmission and contrast
- IPX7 waterproof construction with O-ring seals
- Two throw-down power change levers (short and long) for flexible lever positioning
- Capped turrets protect against accidental bumps and snags
- 6 mil-per-revolution turret increments for precise adjustments
- CR2032 battery illumination system
Specifications
| Magnification / Objective Lens | 1-8x24mm |
| Tube Diameter | 30mm |
| Reticle | Illuminated BTR-1, Second Focal Plane |
| Eye Relief | 3.6 inches (91.4mm) |
| Length | 10.2 inches (259mm) |
| Weight | 16.5 ounces (467g) |
| Field of View | 100 ft @ 1x, 16 ft @ 8x (at 100 yards) |
| Elevation Adjustment Range | 50 MOA / 14.6 MIL |
| Windage Adjustment Range | 50 MOA / 14.6 MIL |
| Turret Travel Per Rotation | 6 MIL |
| Parallax Setting | Set at 100 yards |
| Turrets | Capped elevation and windage (no locking or zero stop) |
| Waterproof Rating | IPX7 (3 feet, 30 minutes immersion) |
| Optics Coating | Fully multi-coated with ultrawide band coatings |
| Illumination | CR2032 battery |
| Color | Black |
Frequently Asked Questions
What's included in the box?
The scope comes with two throw-down power change levers (one short, one long), scope covers, a Spudz lens cloth, a multitool, an instruction sheet, and a Quick Start Guide.
Is this scope suitable for AR-15 rifles?
Yes. The Bushnell 1-8x24 AR Optics is designed for modern sporting rifles and AR platforms. The 30mm tube accommodates standard AR optics mounting systems, and the 1-8x magnification range covers the close-to-mid-distance engagements typical of AR shooting.
Does the scope have a zero stop or locking turrets?
No. The elevation and windage turrets are capped to protect them from snags and hard use, but they do not feature locking mechanisms or a zero stop function. Adjustments are made via the capped turrets with 6 mil-per-revolution increments.
How waterproof is this scope?
The scope carries an IPX7 waterproof rating. O-ring seals keep the internal optics dry when submerged up to three feet of water for up to 30 minutes. It's fully sealed against rain and moisture in normal field conditions.
