Area 419 Zero M-Series Sizing Dies 6 Gt W/ Shell Holder
$500.00
The Area 419 Zero M-Series Sizing Die for 6 GT with shell holder is a precision reloading die engineered specifically for the ZERO press ecosystem. Built by the makers of the ZERO reloading press itself, this die reflects thousands of hours of real-world feedback and testing—the kind of refinement that comes from listening to what reloaders actually struggle with on the bench. Whether you're chasing match-grade accuracy or just getting started in handloading, this die simplifies the sizing process without sacrificing precision.
The M-Series design prioritizes both performance and usability. A micrometer-adjustable headspace and shoulder bump system gives you repeatable, exact control—no guesswork, no creeping adjustments. The precision-ground expander mandrel (shipped as a .002" neck tension standard) ensures consistent neck fit, and the reamer is cut to exacting dimensions so your brass doesn't stick in the chamber after the second firing, a common frustration with inferior sizing. Spring ejection automatically kicks out spent primers, and a hydraulic shoulder pressure relief system protects your brass and press from overpressure events.

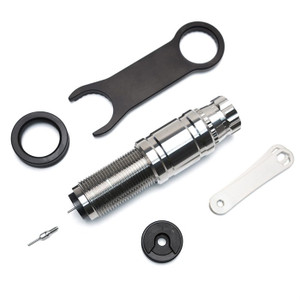

This is a 1¼" die designed for the ZERO press with a Hybrid or 1¼" turret—it will not work with 7/8" turrets or other standard presses. Critically, it requires Area 419's larger-diameter M-Series shell holder (included) and is not compatible with standard shell holders. The die ships complete with the ZERO Die Ring, a spare decapping pin, and installation and removal tools, so you have everything needed to get started.
Manufactured entirely in the USA, the ZERO M-Series Sizing Die reflects a philosophy where every component—press, die, brass, and rifle—is designed to work together as one coherent system.
Key Features
- Micrometer-adjustable headspace and shoulder bump for precise, repeatable setup
- Precision-ground expander mandrel (.002" neck tension standard) with option to add increments via Area 419 Mandrel Kit
- Full-length neck-to-extractor sizing for consistent brass performance
- Reamer cut to exacting specifications to eliminate sticky bolt fit on subsequent firings
- Hydraulic shoulder pressure relief system protects brass and press
- Spring ejection of spent primers for faster workflow
- Replaceable steel decapping pins reduce downtime
- Includes Area 419 ZERO Die Ring, spare decapping pin, and installation/removal tools
- 100% Made in USA
Specifications
| Caliber | 6 Creedmoor |
| Press Compatibility | ZERO press with Hybrid or 1¼" turret only (not compatible with 7/8" turrets) |
| Die Size | 1¼" |
| Shell Holder | Area 419 M-Series shell holder (included) |
| Mandrel | Precision-ground expander mandrel (.002" neck tension standard) |
| Included Accessories | ZERO Die Ring, spare decapping pin, installation/removal tools |
| Manufacturing | 100% USA-made |
Frequently Asked Questions
What press and turret size do I need for the M-Series sizing die?
The Area 419 ZERO M-Series Sizing Die requires the ZERO press fitted with either a Hybrid turret or a 1¼" turret. It is NOT compatible with 7/8" turrets or other standard reloading presses.
Can I use this die with a standard shell holder?
No. The M-Series sizing die requires the larger-diameter Area 419 ZERO M-Series shell holder and cannot be used with standard shell holders. The M-Series shell holder is included with this die.
What comes in the box?
The die ships with the Area 419 ZERO Die Ring, a spare decapping pin, the M-Series shell holder, and all necessary installation and removal tools. The expander mandrel is factory-installed with .002" neck tension; additional increments are available separately through the Area 419 Mandrel Kit.
Is this die suitable for both beginning and experienced reloaders?
Yes. The M-Series die is designed to be user-friendly for new reloaders while delivering the precision needed for match-grade handloads. The micrometer adjustment and precision engineering eliminate much of the trial-and-error often associated with sizing.
