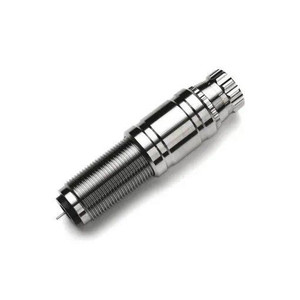

Area 419 Zero M-Series Sizing Dies .223 Rem W/ Shell Holder
$500.00
The Area 419 Zero M-Series Sizing Die for .223 Rem is purpose-built for reloaders who want match-grade accuracy without the headaches that come with poorly designed equipment. Area 419 engineered this sizing die from the ground up with both precision shooters and learning reloaders in mind—it's the result of years spent understanding what works, what doesn't, and what shooters actually struggle with at the bench. The key insight: a sizing die doesn't exist in a vacuum. Your press, your die, your brass, and your rifle all have to work together as one system, and this die was designed with that ecosystem mentality.
What sets the M-Series apart is the combination of user-friendly adjustability and uncompromising precision. The micrometer-adjustable headspace control and shoulder bump let you dial in exactly the sizing you need for your specific rifle and brass—no guessing, no trial and error. The precision-ground expander mandrel (shipped with a .002 neck tension setting) ensures consistent neck sizing, and the reamer is cut to exacting dimensions so you get a true, clean sizing with no binding or sticky bolt issues on cycling. Spent primers eject cleanly thanks to the integrated spring ejection system, and the replaceable steel decap pins mean you're not locked into expensive proprietary parts when wear happens.
Built entirely in America, the M-Series ships with an Area 419 ZERO Die Ring, a spare decapping pin, and all the install and removal tools you need. Note: this is a 1-1/4" die and requires a compatible 1-1/4" turret on your ZERO press or other 1-1/4" equipped reloading press; it will not fit 7/8" turrets or standard 7/8" presses.
Key Features
- Micrometer-adjustable headspace and shoulder bump control for precision tuning to your rifle
- Precision-ground expander mandrel (.002 neck tension mandrel included; additional increments available separately)
- Full-length neck-to-extractor sizing for consistent case prep
- Spring-ejection system for easy spent primer removal
- Replaceable steel decap pins for long-term durability without proprietary replacement costs
- Reamer cut to exacting tolerances for true sizing and smooth bolt cycling
- Hydraulic shoulder pressure relief for controlled, predictable operation
- 100% manufactured in America
- Includes ZERO Die Ring, spare decapping pin, and install/removal tools
Specifications
| Caliber | .223 Rem |
| Die Size | 1-1/4" |
| Included Accessories | Area 419 ZERO Die Ring, spare decapping pin, install/removal tools, shell holder |
| Expander Mandrel | .002 neck tension mandrel (standard); additional mandrels available via mandrel kit |
| Country of Origin | USA |
Frequently Asked Questions
What press does this die work with?
The Area 419 Zero M-Series Sizing Die is a 1-1/4" die and requires a 1-1/4" turret. It is compatible with the Area 419 ZERO press (with a hybrid or 1-1/4" turret setup) and other reloading presses equipped with 1-1/4" turrets. It cannot be used with 7/8" turrets or standard 7/8" presses.
What neck tension setting does it come with?
The die ships with a .002 neck tension mandrel as the standard expander. If you want to run different neck tension settings, Area 419 offers a mandrel kit with additional increments that you can swap in.
What's included in the package?
Each die comes with an Area 419 ZERO Die Ring, a spare decapping pin, the necessary install and removal tools, and a shell holder for your caliber.
Can I use this die if I'm new to reloading?
Yes. The M-Series was specifically designed to be user-friendly for both experienced and learning reloaders. The micrometer adjustments make it straightforward to dial in your sizing without years of trial and error, and the integrated spring ejection and replaceable decap pins reduce frustration at the bench.
