Area 419 Zero M-Series Die Sleeve And Mandrel Kit 6.5 Prc
$160.00
The Area 419 Zero M-Series Die Sleeve and Mandrel Kit for 6.5 PRC gives you the modularity advantage of the M-Series platform without buying a complete new die. If you already own an Area 419 M-Series die and want to reload 6.5 PRC brass, or add this caliber to your existing setup, this kit is the economical way to expand your reloading bench. It's built on the same precision engineering that made the M-Series system stand out: micrometer-adjustable headspace control, ground mandrels for consistent neck tension, and spring-loaded decapping that serious handloaders have come to expect from Area 419.
What you get is a complete swap-in package for your existing M-Series die body. The caliber-specific sizing sleeve handles full-length case sizing the same way your current die does, while the included mandrel delivers approximately 0.002" of neck tension—the same as factory M-Series equipment. The extra decapping pin is a practical addition for when you need a spare. This modular approach means you're not locked into one caliber; as your reloading interests grow, you can pick up additional sleeves and mandrels to turn one die body into a multi-caliber station.
M-Series dies are known for their tight headspace control and repeatability, and this kit preserves all of that. The ground mandrel and precision sleeve work together to size neck diameter uniformly, reducing run-out and shot-to-shot velocity variation. For 6.5 PRC shooters building match rounds or hunting loads where consistency matters, this kit lets you leverage the M-Series advantage at a lower entry point than a complete die purchase.
Critical note: This is a replacement kit for M-Series die bodies only. Do not purchase this kit unless you already own an Area 419 M-Series die. The sleeve and mandrel are internal components designed to work within the M-Series system and cannot function standalone.

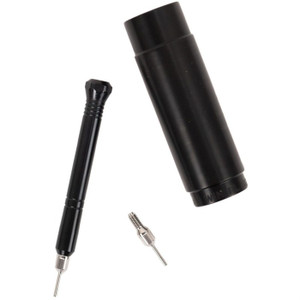

What's Included
- One 6.5 PRC sizing sleeve (internal sizing insert for M-Series die body)
- One ground mandrel (delivers approximately 0.002" neck tension)
- One spare decapping pin
Frequently Asked Questions
Do I need an Area 419 M-Series die already to use this kit?
Yes. This kit contains internal components only—sleeve, mandrel, and decapping pin. You must already own an M-Series die body for this caliber to work. It is not a standalone die and cannot be used without the die body.
What neck tension does the mandrel provide?
The included mandrel delivers approximately 0.002" of neck tension in use, consistent with the standard mandrel that comes in complete M-Series dies.
What if I want to reload multiple calibers on one M-Series die body?
That's the advantage of the M-Series modular system. You can purchase additional caliber-specific sleeve and mandrel kits to swap into your existing die body, turning it into a multi-caliber station without buying new die bodies.
Is there a spare decapping pin included?
Yes. The kit includes one extra decapping pin for replacement when needed.
