Area 419 Hellfire 2P-Self Timing Muzzle Brake W/ Adapter 223/6Mm 1/2-28
$145.00

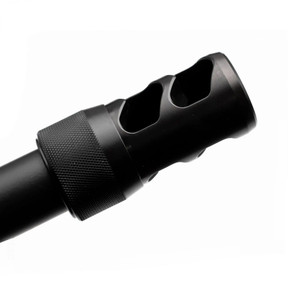

The Area 419 Hellfire 2P self-timing muzzle brake with adapter is engineered for shooters running AR-platform rifles and other semi-automatic systems in .223, 5.56 NATO, .204 Ruger, or other calibers up to .243 (6mm) on barrels 20 inches or shorter. Unlike generic brakes that spin during installation, this self-timing design locks into position automatically, eliminating the guesswork of port alignment and the frustration of fighting runaway hardware. It's built from the ground up as a purpose-built system—not a knockoff—and it shows in the install experience and real-world performance.
Setup is refreshingly straightforward. The universal adapter threads onto your barrel with a standard 5/8" wrench and stays put; the brake assembly then hand-threads onto that adapter. Rotate the brake until level, push it home to engage the taper lock, and hand-tighten the knurled collar. No tools needed for timing, no second-guessing, no re-zeroing required if you remove and reinstall later. The self-locking design means the brake won't creep or shift as you torque—it stays exactly where you positioned it.
Recoil reduction and flash control are optimized for shorter barrels where performance matters most. The modular system is part of Area 419's broader Hellfire platform, giving you upgrade and customization options down the road. Whether you're running a precision .223 build, a 5.56 duty rifle, or a compact hunting setup, the Hellfire 2P delivers the brake performance of a custom piece with the ease of a drop-in upgrade.
Key Features
- Self-timing design locks automatically—ports align correctly without trial and error
- Hand-tighten knurled nut requires no tools; simple and fast installation
- Threaded adapter stays permanently on barrel; brake assembly hand-threads on and off
- Excellent return to zero—removal and reinstallation won't shift your zero
- Optimized for semi-automatic rifles and hunting platforms with barrels 20" or shorter
- Works across .223, 5.56 NATO, .204 Ruger, and calibers up to .243 (6mm)
- Part of the modular Hellfire system for future customization
Specifications
| Brand | Area 419 |
| Model | Hellfire 2P |
| Type | Self-timing muzzle brake with adapter |
| Thread Pattern | 1/2-28 (standard .223 / 5.56 NATO) |
| Caliber Compatibility | .223, 5.56 NATO, .204 Ruger, and other calibers up to .243 (6mm) |
| Recommended Barrel Length | 20" or shorter |
| Adapter Wrench Size | 5/8" |
| Installation Method | Hand-tighten (no tools required for timing) |
Frequently Asked Questions
Will this muzzle brake fit my .223 or 5.56 rifle?
Yes. The Hellfire 2P is optimized for .223, 5.56 NATO, and calibers up to .243 (6mm). It features a 1/2-28 thread pattern, which is standard on most AR-15 barrels and other semi-automatic rifles in these calibers. The adapter threads onto your barrel, and the brake assembly hand-threads onto the adapter.
Do I need special tools to install this brake?
You'll need a 5/8" wrench to thread the adapter onto your barrel. Once that's done, the brake assembly hand-threads onto the adapter and hand-tightens with a knurled collar—no additional tools needed. The self-timing design means you don't have to align ports or guess at final positioning.
If I remove the brake later, will I have to re-zero my scope?
No. Area 419 designed the Hellfire 2P with excellent return-to-zero characteristics. You can remove and reinstall the brake without needing to adjust your zero.
What comes included with this muzzle brake?
The package includes the Hellfire 2P brake assembly and the threaded adapter that secures to your barrel.
