Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - 5/8"15/16" Clamping Range - 10-Pack - SAE Size 8

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - 5/8"ì15/16" Clamping Range - 10-Pack - SAE Size 8

Trident Marine
SKU:
126247052
|
UPC:
704917023151
|
MPN:
705-0121
$17.05
$25.47
(You save $8.42 )
Current Stock:
Product Overview

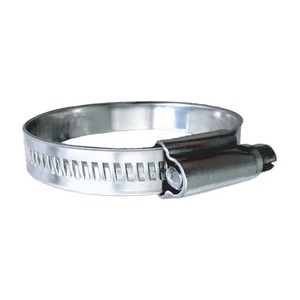

316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - 5/8"–15/16" Clamping Range - 10-Pack - SAE Size 8

Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel Compact “HD NON-PERF” Worm Gear Hose Clamp. The 9.7 mm (0.382”) wide band is Non-Perforated and smooth on the inside with rolled edges. This eliminates hose damage with increased clamping force. The high strength, compact, one-piece 14mm (0.55”) wide housing provides one of the highest clamping force ratings of any worm gear style clamp.

Features:

  • The screw head is 7mm
  • Long service life and safety for most general-purpose hose applications and connections

Recommendations:

  • Measure hose O.D. before selecting clamp size for proper fit
  • Double clamp on each hose end for critical applications

Construction:

  • Band & Housing: 316 Stainless Steel 9.7 mm wide band – 0.8mm thick
  • Screw Drive: 316 Stainless Steel 7.0 mm screw head

Specifications:

  • SAE Size: 8
  • Hose Inner Diameter: (inch) 3/8" – 1/2"
  • Clamping Range: (inch) 5/8" – 15/16"  / (mm) 15-24
  • Recommended Torque Inch lbs: 25-35

Manufacturer : Trident Marine
Manufacturer Part No : 705-0121
UPC : 704917023151
